Every beautifully milled crown, veneer, or onlay is only as good as the bond that holds it in place. You can design the perfect restoration and still lose marginal integrity, long-term strength, or esthetics if the cementation protocol isn't followed with precision.
This guide walks through the full adhesive delivery protocol for ceramic restorations — from field isolation to final polymerization — the same sequence we rely on for consistent, predictable results chairside. Full protocol PDF is available to download at the end of this post.
A Note on Immediate Dentin Sealing (IDS)
If an Immediate Dentin Sealing layer was applied during the preparation appointment, treat it as native tooth structure for the rest of the cementation process. Follow the adhesive manufacturer's instructions exactly as if you were priming unsealed dentin or enamel directly — the IDS layer doesn't change the protocol, it becomes part of the substrate.
Step 1: Field Control & Surface Preparation
Everything downstream of this step depends on getting it right.
Absolute isolation. Rubber dam placement is mandatory. A completely dry, moisture-free field is non-negotiable for predictable adhesion — there is no reliable bonding protocol that survives contamination.
Protect the neighbors. Isolate adjacent teeth with Teflon (PTFE) tape before sandblasting or applying any chemical etchant.
Micro-abrasion. Clean the preparation using aluminum oxide particles (27–50 µm Al₂O₃) at low pressure. This removes temporary cement debris, eliminates biofilm, and increases surface area for mechanical retention.
Step 2: Conditioning & Etching the Tooth
Phosphoric acid application. Apply 33–37% phosphoric acid (blue gel) to the prepared tooth structure.
Targeted etching. Depending on your adhesive system and the underlying substrate, use either a selective-etch technique (enamel margins only) or a total-etch technique.
Timing matters. Let the etchant dwell 15–30 seconds on enamel, and 10–15 seconds on dentin if you're using a total-etch protocol. Over- or under-etching both compromise the result.
Step 3: Adhesive Application

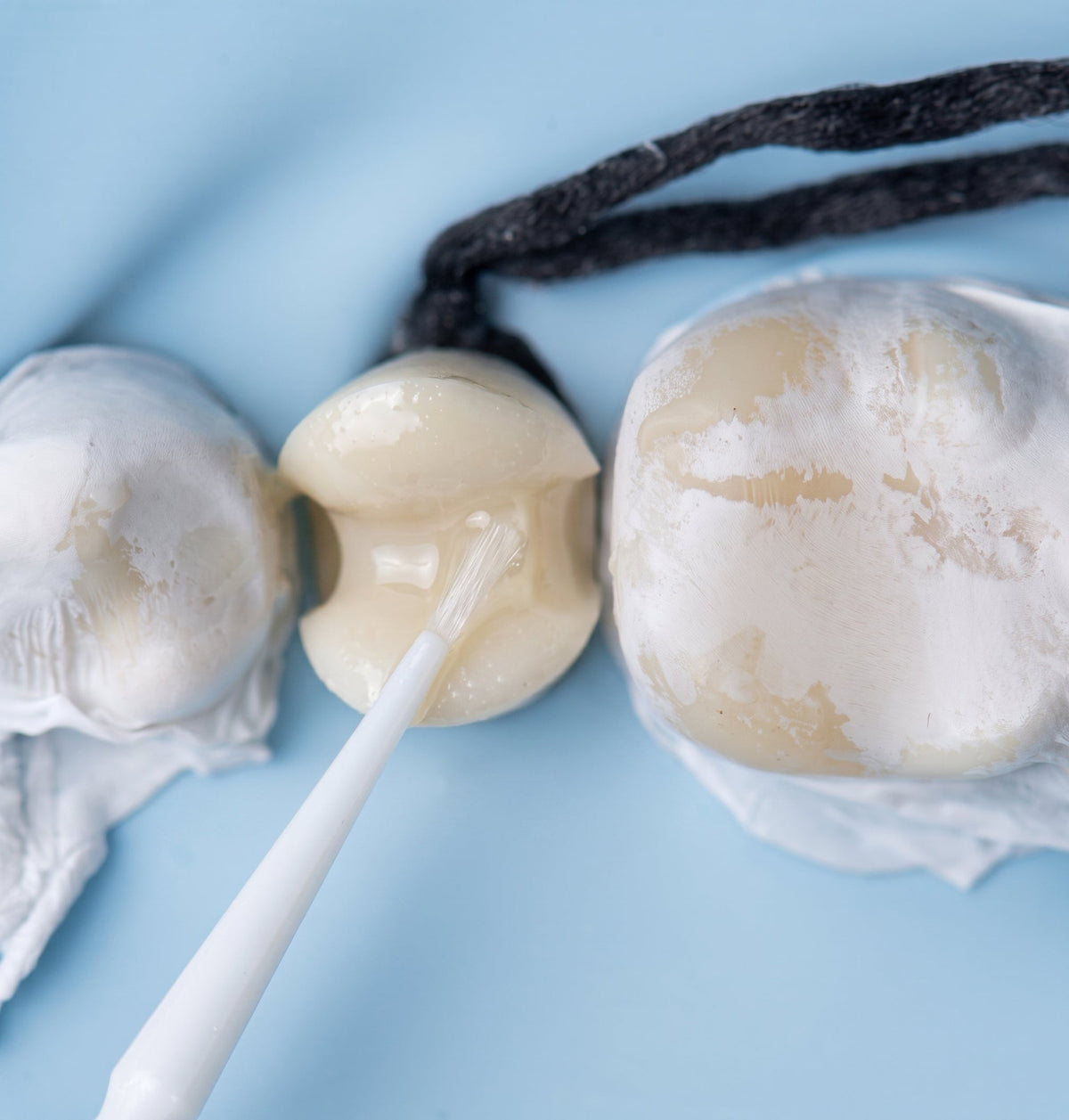

Active application. Apply the bonding agent and actively scrub it into the dentin and enamel for 15–20 seconds to drive deep penetration into the dentinal tubules and collagen network.
Evaporation. Air-thin the adhesive with a moisture-free air syringe. This step evaporates the solvent, prevents pooling, and ensures a uniform, thin film.
Light polymerization — with one critical exception. Light-cure the adhesive per manufacturer specs. But if you're using a 2-component adhesive system for indirect restorations, do not pre-cure the adhesive layer. Cure it simultaneously with the restoration seated, so the adhesive film doesn't inhibit complete seating during cementation.
Step 4: Restoration Preparation (HF Etch)
While the tooth is being conditioned, the restoration itself needs its own preparation.
Hydrofluoric acid application. Apply HF acid (typically 4.5–9%) strictly to the intaglio surface of the restoration.
Why it works. The acid selectively dissolves the glassy matrix of the ceramic, creating the microporosities essential for strong micromechanical retention.
Respect the manufacturer's timing. 20 seconds for lithium disilicate, 60 seconds for feldspathic porcelain. Over-etching weakens the ceramic structure and compromises the bond — this is not a step to eyeball.
Initial rinse. Rinse thoroughly with copious air-water spray to stop the etching reaction and remove the bulk of the active acid.
Step 5: Post-Etch Cleaning
This is the step most protocols skip — and the one that quietly ruins bond strength when it's skipped.
Decontamination. After HF etching, apply 33–37% phosphoric acid to the intaglio surface for 30–60 seconds.
What it's actually doing. This isn't a second etch — it's a cleaning step that dissolves and removes residual mineral salts left behind by the HF acid, salts that can severely compromise bond strength if left in place.
Finalize. Rinse away the phosphoric acid with copious air-water spray for at least 30 seconds, then dry completely until the ceramic has a pristine, frosted appearance.
Clinical pearl. For maximum efficacy in removing residual salts, pair the phosphoric acid cleaning with a 2–5 minute cycle in an ultrasonic bath before the final rinse.
Step 6: Silane Application
Chemical coupling. Apply silane to the thoroughly dried, etched surface. This creates the chemical bridge between the inorganic glass-ceramic and the organic resin cement.
Application. Coat the surface evenly and let the silane react undisturbed, typically for 60 seconds.
Solvent evaporation. Air-dry with a moisture-free air syringe. This evaporates the carrier solvent (alcohol) and leaves only a thin, active monolayer of silane behind.
Why it's non-negotiable. Silanization is essential for glass-based ceramics — lithium disilicate, feldspathic porcelain — to maximize adhesive bond strength and long-term clinical success.
Step 7: Cement Application
Application strategy. Load the luting agent directly into the restoration or dispense it onto the prepared tooth, depending on clinical access, isolation, and your own preference.
Heated composite as a luting agent. Pre-heated composite works excellently here. Heating lowers the composite's viscosity for optimal film thickness while still offering strong mechanical properties and high marginal wear resistance.
Dedicated resin cements. Alternatively, specialized dual-cure or purely light-cured resin cements (Panavia V5, Variolink, and similar systems) offer predictable flowability, precise handling, and a wide range of shades to fine-tune the final esthetic result.
Step 8: Delivery, Cleanup & Final Polymerization
Seating and tack curing. Seat the restoration with firm, continuous pressure. Perform a brief spot cure (1–2 seconds) at the margins to bring the extruded cement into a manageable "gel" phase.
Interproximal cleanup. Tie a single knot in dental floss and carefully pull it through the embrasure, or use Superfloss. The knot mechanically drags out the gelled cement without dislodging the restoration.
Margin refinement — with caution. A #12 scalpel blade can gently peel away excess gelled cement at the margins. Be careful here: aggressive instrumentation can pull cement out from under a margin that isn't fully cured yet, creating micro-voids.
Oxygen inhibition and final cure. Apply a layer of glycerin gel over all exposed margins to block oxygen and prevent an unpolymerized inhibition layer. Then complete a full, definitive light-cure from all aspects — buccal, lingual, occlusal — to ensure maximum conversion of the luting agent.
Why This Sequence Matters
None of these steps are optional extras. Skip the post-etch cleaning and residual HF salts undermine the silane bond. Rush the isolation and moisture contamination undermines everything downstream of it. Over-instrument the margins before full cure and you create the exact micro-voids this whole protocol exists to prevent. A bonded restoration is only as strong as its weakest step — treat each one with the same precision you'd want in your own mouth.
Want the full protocol as a quick chairside reference? Download the complete Bonded Restoration Protocol PDF below and keep it on hand for your next cementation appointment.
